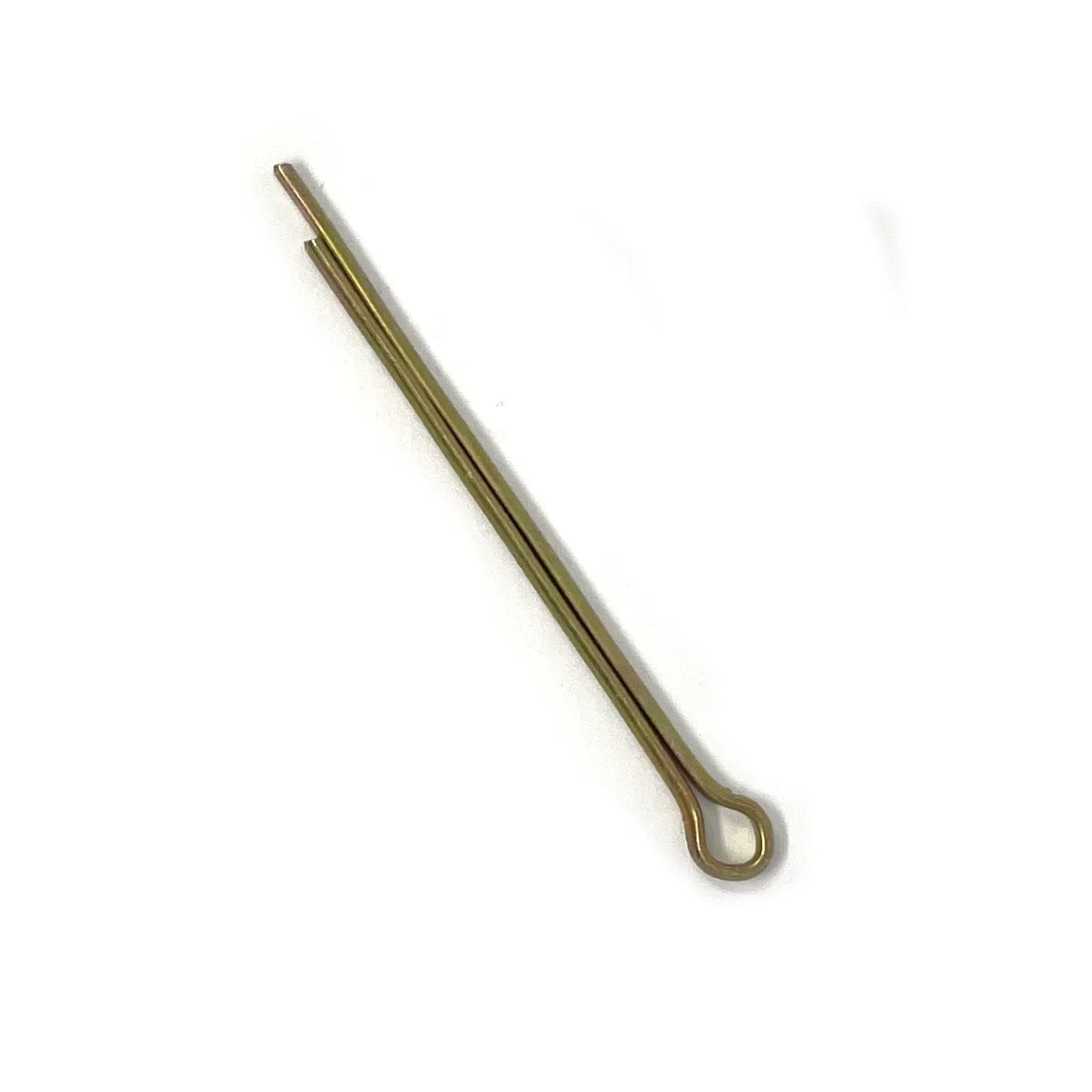

Mili Std - Steel Pin, Cotter | MS24665-304
The MS24665-304 is as the name describes—a split cotter pin made of corrosion resistant steel. More information can be found below.
- Diameter: 0.086 Inches Minimum And 0.090 Inches Maximum
- Underloop Length: 1.125 Inches Minimum And 1.375 Inches Maximum
- Point Type: Extended Prong Square Cut
- Hardness Rating: 60.0 Rockwell Superficial 15-N Minimum Overall And 70.0 Rockwell Superficial 15-N Maximum Overall
- Material: Steel Comp 302 Overall Or Steel Comp 304 Overall
- Material Document And Classification: Astm A493 Assn Std All Material Responses Overall
- Surface Treatment: Passivate Overall
- Surface Treatment Document And Classification: Astm A380 Assn Std Single Treatment Response Overall
- Style Designator: Standard
